Compatible Replacement PS307-1EA00 ANALOG OUTPUT CHINA-MADE Replacement Compatible

Place of Origin : CHINA

Brand Name : JAD

Model Number : JAD 307-1EA00

Price : 110 USD

Delivery Time : In Stock

Warranty : 2 Years

Contact Now

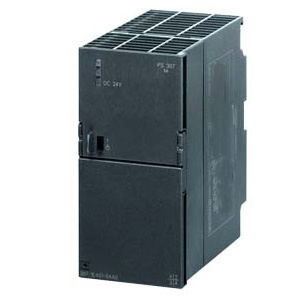

PS307-1EA00 STABILIZED POWER SUPPLY

Product description:
Input 120/230V AC, output: 24V DC/5 A. Reverse polarity protection function. Compatible with Siemens S7-300 and VIPA 300V. Optical isolation, reliable and stable.



Replacement for Siemens PLC part NO.:  6ES7307-1EA00-0AA0
Compatible 6ES7307-1EA00-0AA0 Compatible 6ES7 307-1EA00-0AA0 Compatible 6ES73071EA000AA0


Product Features:
●   Reverse polarity protection function
●   Bus/ Channel isolation,Reliability
●   Compatibility design, Convenient application

Product Specifications
Type
PS307  Power supply
Compatible Replacement PS307-1EA00 ANALOG OUTPUT CHINA-MADE Replacement Compatible
Product Introduction
Input 120/230V AC, output: 24V DC/5 A
Technical specifications

Order No.
JAD 307-1EA00
Power loss
Rated value
24V DC
Polarity Protection
Effective
●Bus Loss Current
About 40mA
●Total Power Dissipation
About 3W
Output Channel number
4
Cable length(shield)
Longest 200m
  Output Characteristic

●Output voltage, short circuit current protection
Effective
●Output voltage, Max. short circuit current
25mA
●Output current, Max. open circuit voltage
18V
Load impedance
●Voltage output, min.
1KΩ
●Current output, max.
500Ω
Output range
●Voltage
±10V,0~10V,1~5V
●Current
±20mA,0~20mA,4~20mA
DA  conversion accuracy
12 bits
Conversion time(single channel)
Max.0.8mS
Boot time
●Resistive load
0.1mS
●Inductive load
3.3mS
●Capacitive load
0.5mS
Error
●Voltage output
±0.6%
●Current output
±0.6%
Interrupt
●Diagnostic Interrupt
None
●Group error indication
None
Front connector
20 pin
Insulation test voltage
500V DC
Isolation
●Between channel and bus
effective
●Between channel and power supply
effective
Temperature
0~60℃
Dimension
(W*H*D)
40×125×120
Weight
About 850g

Wiring diagram
Compatible Replacement PS307-1EA00 ANALOG OUTPUT CHINA-MADE Replacement Compatible


PS307-1EA00


Order Data
Specifications
Order NO.
PS307, Input 120/230V AC, output: 24V DC/5 A. JAD 307-1EA00
